DieDesign

  • Finite Element Analysis (FEA) Flattening
  • Unbending (also works with “dirty” bent parts)
  • StripLayout, including Round Draw module
  • Blank Nesting Optimization
  • Quoting Information

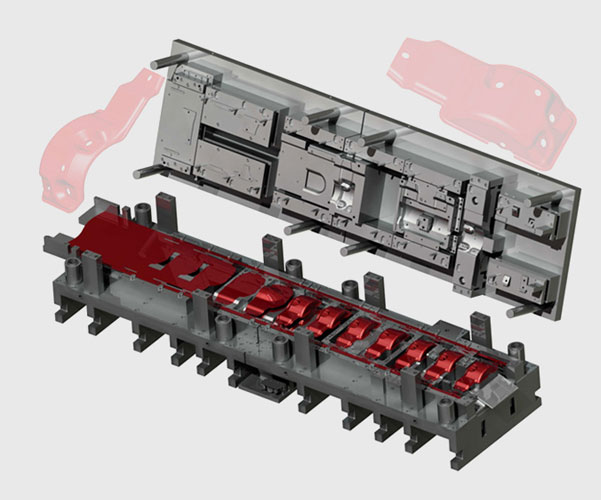

  • Tool Design
  • Standard Catalog Components
  • 2D Drawings
  • Tool & Die BOM
  • Tool & Die Hole Tables
  • Tool & Die Automatic Dimensioning
  • Die Simulation (Die Kinematics)
Learn more
DieDesign

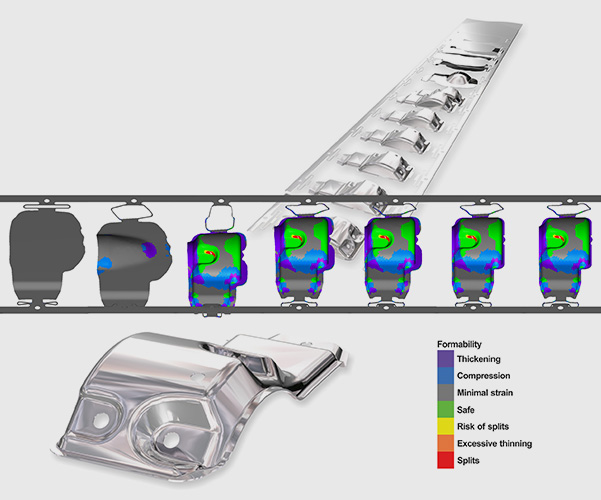

Forming Simulation

  • Discover formability and springback issues at the strip layout design stage
  • Affordable, easy to use, and highly accurate virtual tryout press
  • Results provided for thinning, wrinkling, splitting, strain, etc
Learn more
DieDesign

DIE DEBUGGER (die kinematics)

Learn more

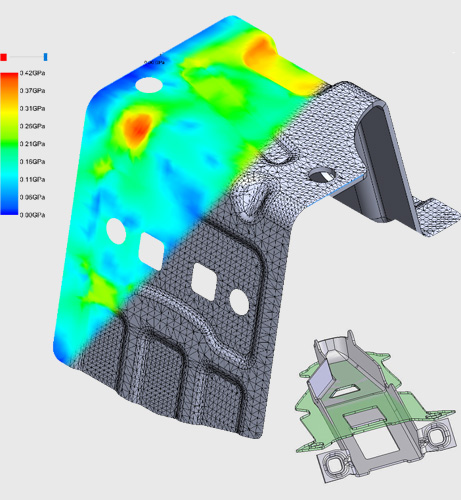

Unbending & Blank prediction needs

  • Blank Prediction for Complex 3D Shaped Parts
  • Progressive Unbending for Parts with linear bends, extrusions, flanges, ...
Unbending & Blank prediction needs Learn more 14 Day FREE Trial
Unbending & Blank prediction needs

What's new Logopress since 1989

October 18th, 2024 => New LogoPress 2024 SP2.1 version available

Export to Simulation: Neutral interface for exporting to external simulation software

ProgSimX: Simulation option for unlimited size parts

Storage of LogoPress data in the 3DEXPERIENCE platform

Standard component library: Shaped cylindrical standard punches/die buttons (rectangle, oblong…) with locking flat

Heel clearance reduction in die opening: Function to automate the clearance of punch heel in the die opening

Unbending by steps: Fixed face is displayed in red - Preview of the result before validating

Face selection tool: by extension (Expand) or by radius (Contiguity)

Plus over 60 user-driven improvements and fixes

Current versions Solidworks certified Gold product

LogoPress 2024 SP2.1 built for:

SOLIDWORKS 2024 SP0.1, SP1, SP2, SP3.1, SP4
SOLIDWORKS 2023 SP5
SOLIDWORKS 2022 SP5
SOLIDWORKS 2021 SP5.1

Windows11 and Windows10 compatible

123GO 2024 SP0: runs with SOLIDWORKS 2024, 2023, 2022, 2021

American flagCanadian flag

Dear American and Canadian visitors,
do not forget to also visit your dedicated website www.DieDesignSoftware.com

Accurate Die Design Software
